Description
Connector
M12
Current Rating
4A
Voltage Rating
250V
Contact Body
Nylon+GF
ContactS
Copper Alloy
O-Ring
Silicon
Field Installable
Right Angled Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ
Two-Piece Angled

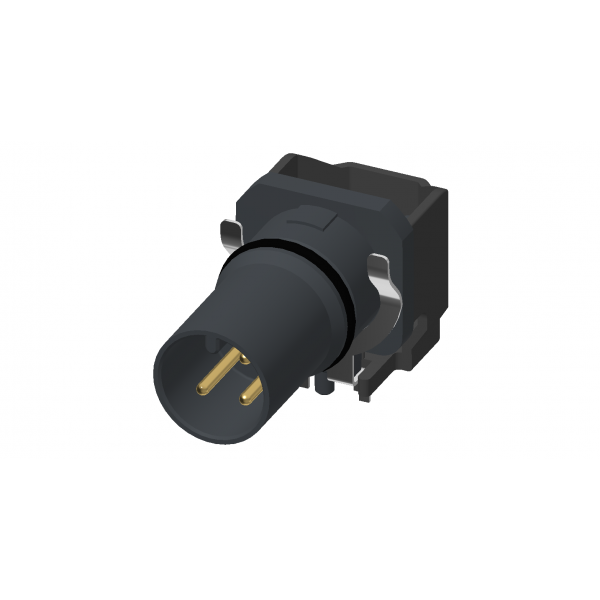

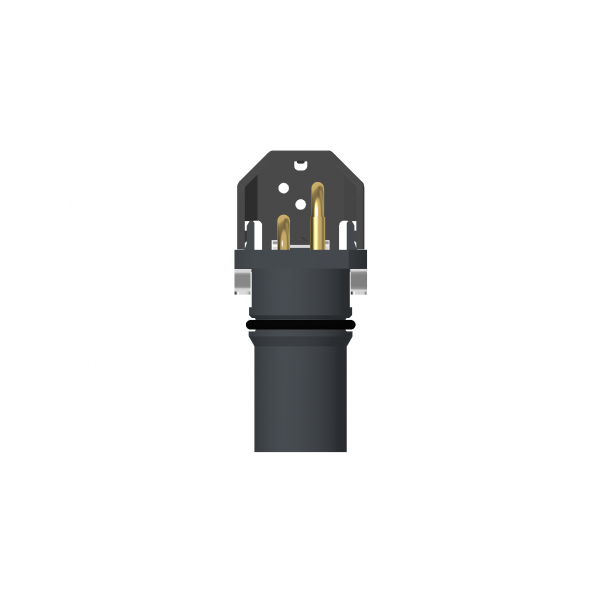

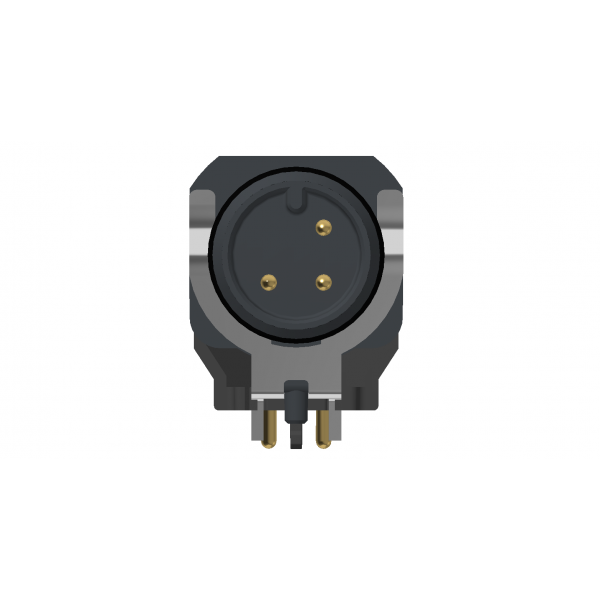

M12 CONNECTOR
12A03-00PX-RDS-00
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M12 for all common fieldbuses and networks.
Detail
