Description
Connector
M12
Current Rating
2A
Voltage Rating
30V
Contact Body
Nylon+GF
ContactS
Copper Alloy
O-Ring
Silicon
Field Installable
Solder Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ
One-Piece

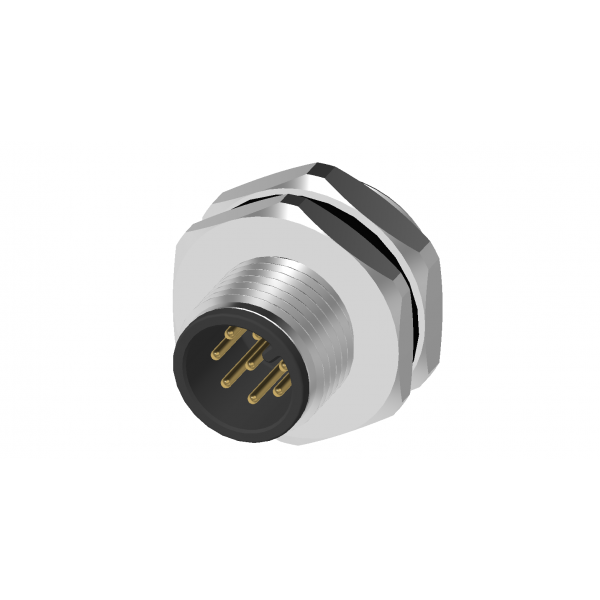

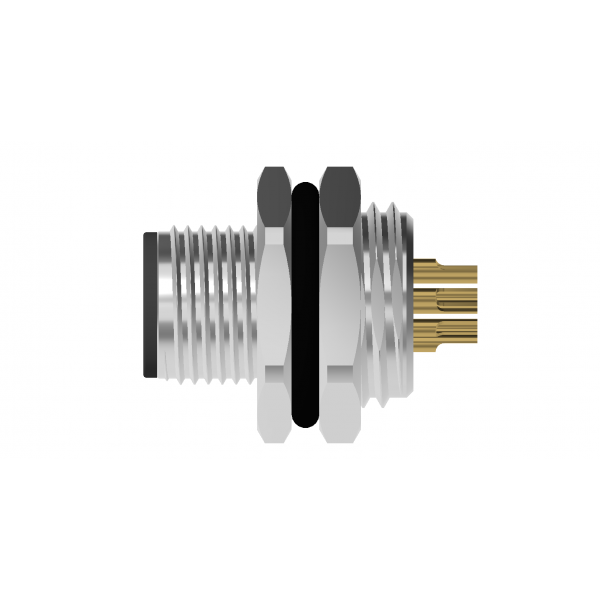

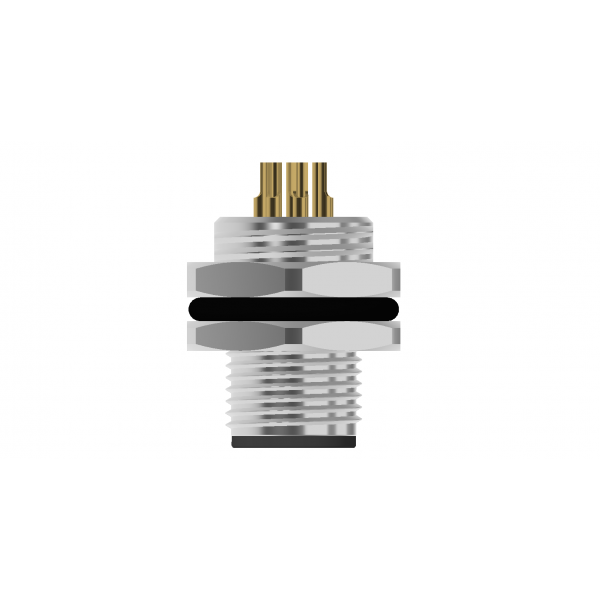

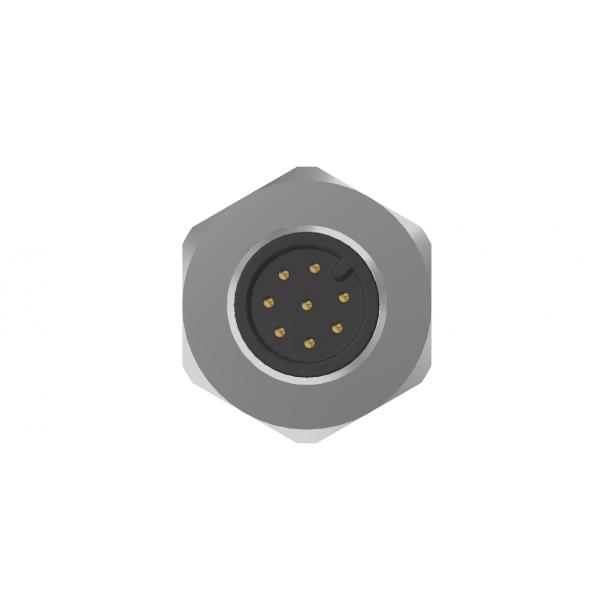

M12 CONNECTOR
12A08-P09H-LS0-A1
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M12 for all common fieldbuses and networks.
