Two-Piece SMD

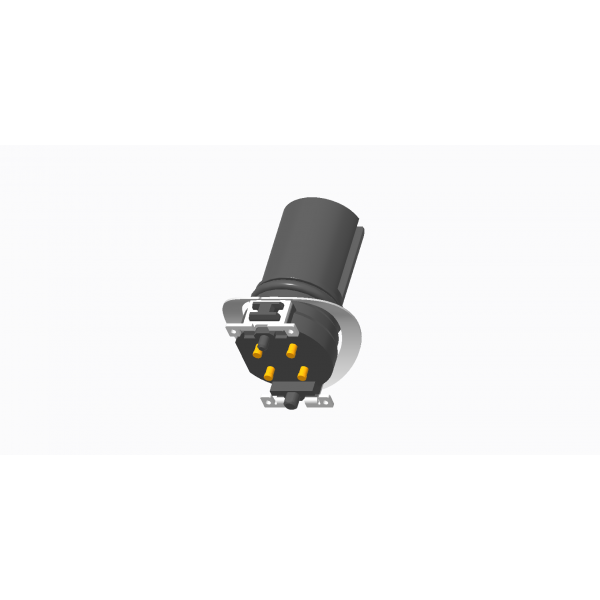

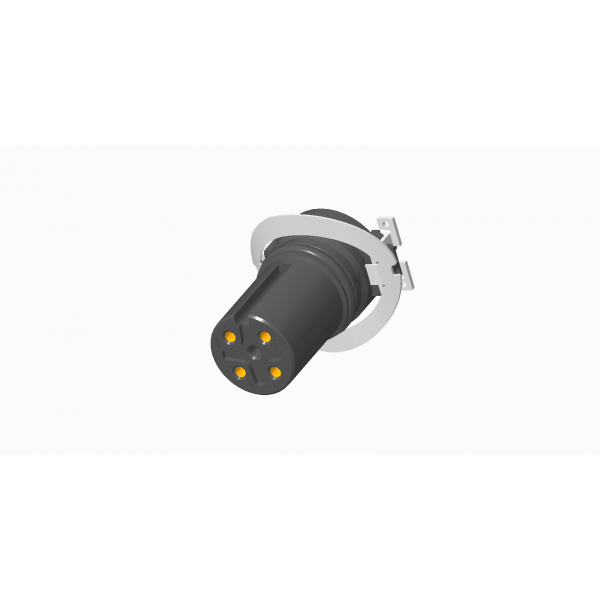

M12 SMD CONNECTOR

12A04-00SX-SDD-J0

For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M12 for all common fieldbuses and networks.
Detail

Description

 Connector

M12



 Current Rating

4A

Voltage Rating

250V

Contact Body

Nylon+GF



 ContactS

Copper Alloy



 O-Ring

Silicon



 Field Installable

SMD Type



Insulation Resistance

≧ 100mΩ



 Contact Resistance

≦ 10mΩ
