Description
Connector
M8
Current Rating
4A
Voltage Rating
50V AC/ 60V DC
Shell Material
Brass
Contact Body
Nylon+GF
Contacts
Copper Alloy
Field Installable
Solder Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ

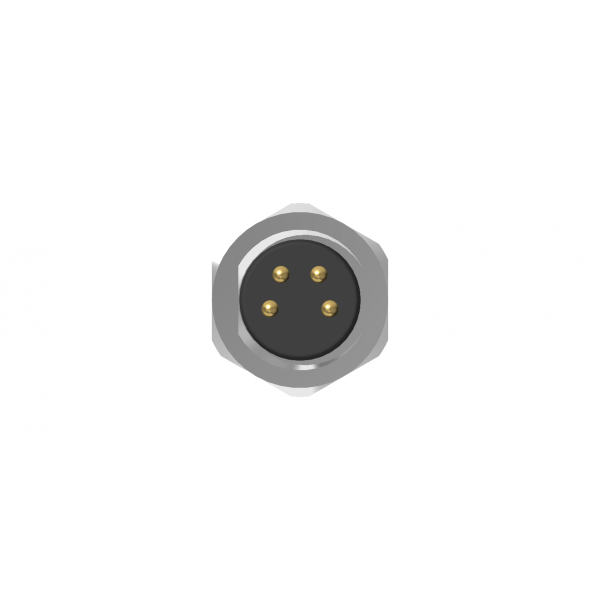

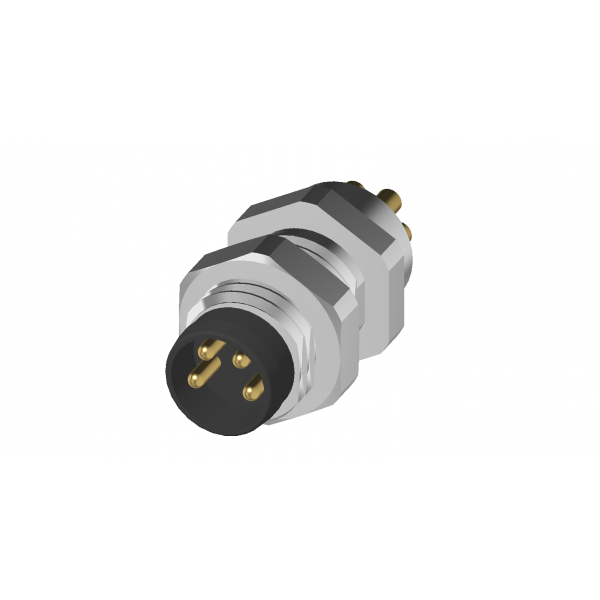

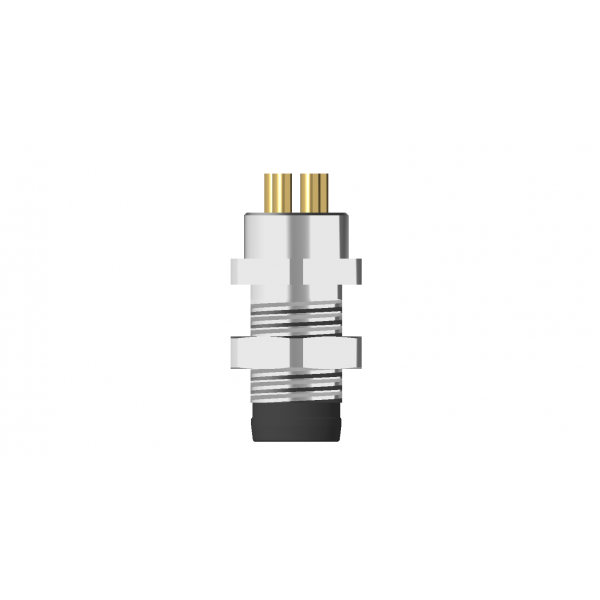

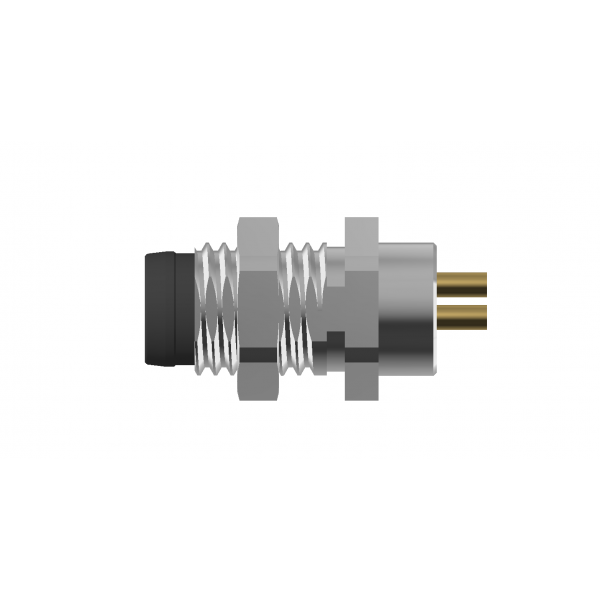

M8 Panel
SENSOR M8 CONNECTOR
M8A03-P08F-LS0-00
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M8 for all common fieldbuses and networks.
Detail
