Description
Connector
M8
Current Rating
1.5A
Voltage Rating
30V
Shell Material
Brass
Contact Body
Nylon+GF
Contacts
Copper Alloy
Field Installable
Solder Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ
M8 Panel

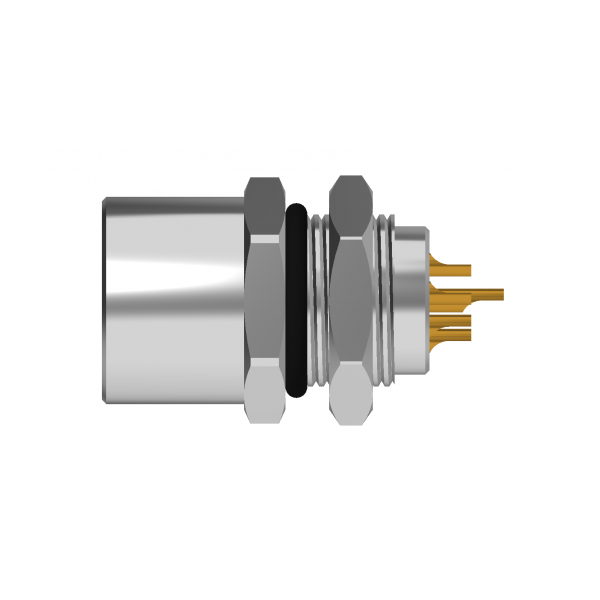

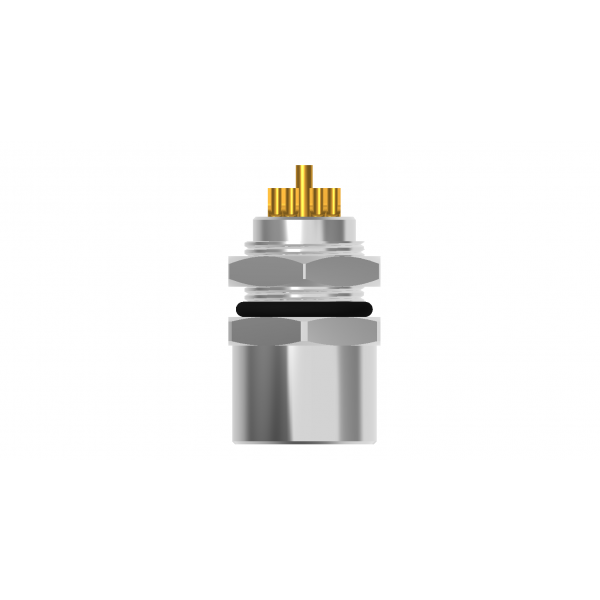

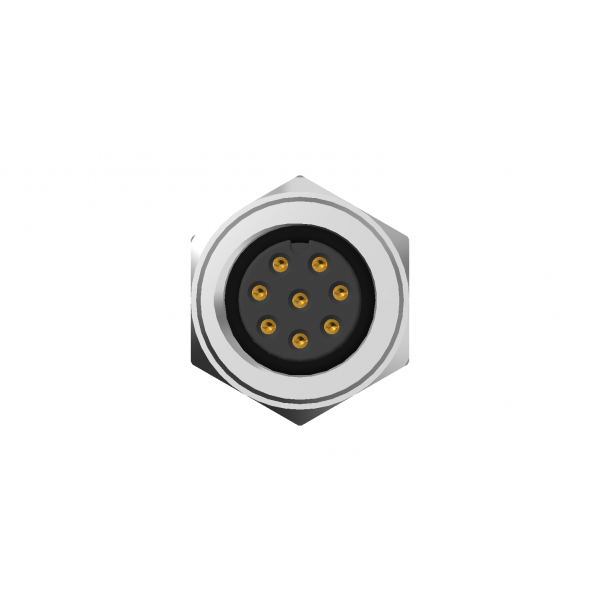

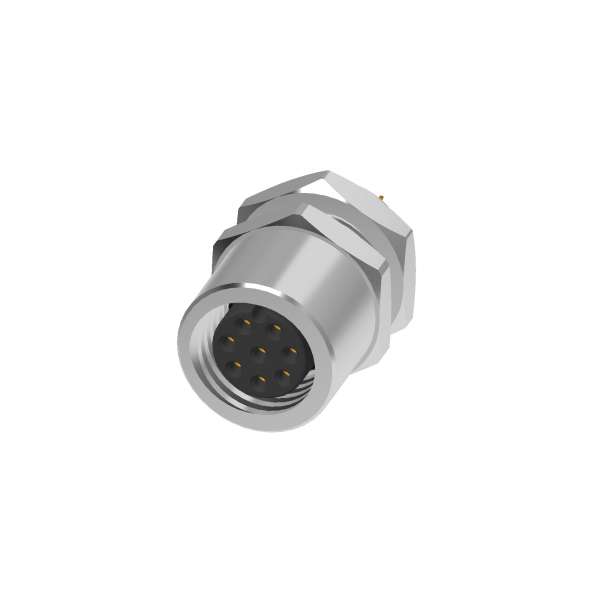

SENSOR M8 CONNECTOR
M8A08-S08H-LS0-J0
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M8 for all common fieldbuses and networks.
Detail
