Description
Connector
M5
Current Rating
1A
Voltage Rating
60V
Shell Material
Brass
Contact Body
Nylon+GF
Contacts
Copper Alloy
Field Installable
PCB Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ
M5 Panel

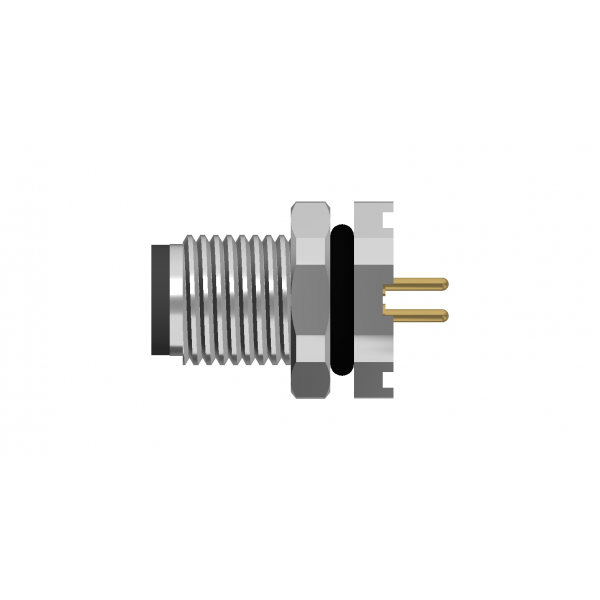

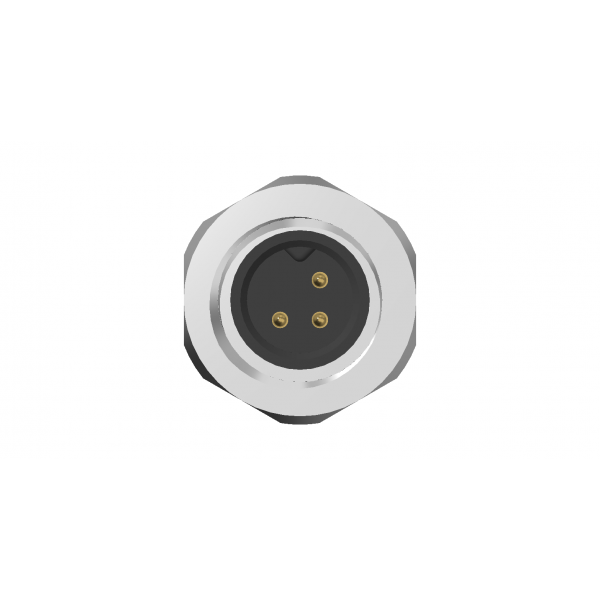

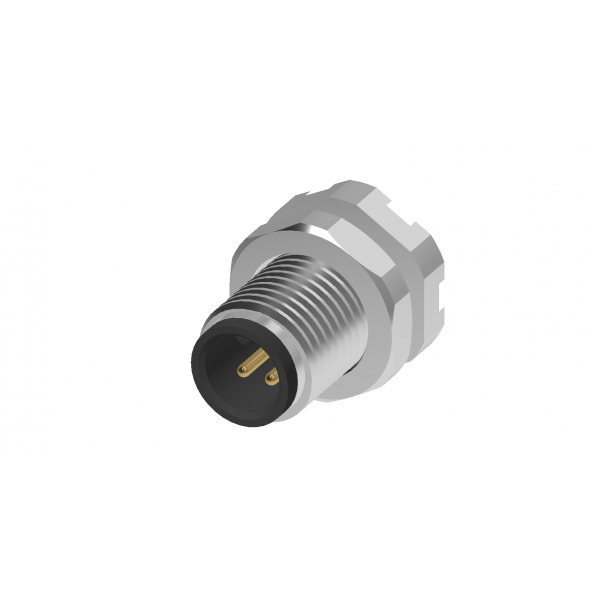

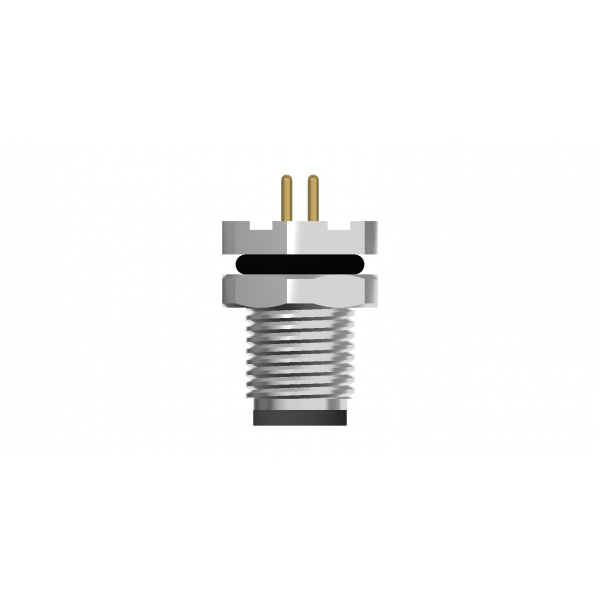

SENSOR M5 CONNECTOR
M5A03-P05F-LD0-F0
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M5 for all common fieldbuses and networks.
