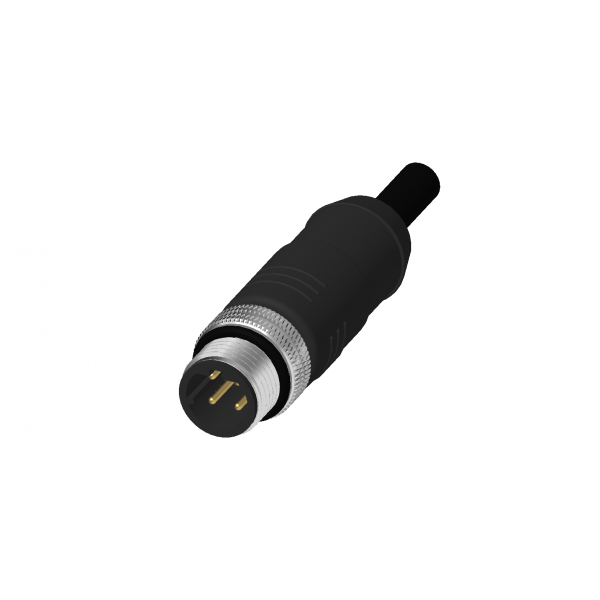

M12 Overmoulded
M12 Connector
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M12 for all common fieldbuses and networks.
Specifications Standard Value
- Description : SMD, Right Angle, Penal Mount, Molded With Cable
- Current Ration / Pin Arrangements : A,B,D,X,Y,S,T,K,L,M Code
- A Code 3, 4Pin (250V 4A), 5Pin (60V 4A), 8Pin (30V 2A), 12, 17Pin (30V 1.5A)
- B Code 5Pin (60V 4A)
- D Code 4Pin (250V 4A)
- X Code 8Pin (AC 50V/DC 60V 0.5A) ,CAT6a
- S Code 4Pin (AC 630V 12A), T Code 4Pin (DC 63V 12A)
- K Code 5Pin (AC 630V 12A/16A), L Code 5Pin (DC 63V 12A/16A), M Code 6Pin (AC 630V 8A).
- Temperature Range Cable : -25℃+ 90℃(PU) , -20℃+ 80℃(PVC)
- Temperature Range Connector Body : -40℃+ 105℃
- Waterproof Rating : IP66, IP67, IP68, IP69K
